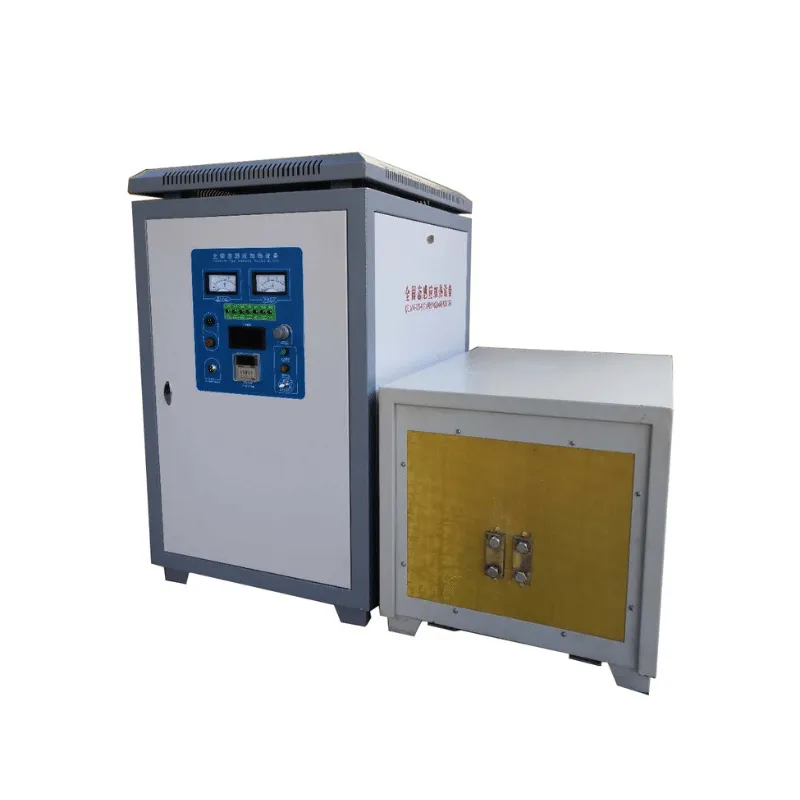

HYCY-65 Super-Audio Frequency Induction Heating Equipment

Description

Characteristics of Induction Heating Equipment:
1. Utilizes imported high-quality IGBT solid-state power modules and our company’s second-generation frequency conversion technology, coupled with a unique cooling system, ensuring 24-hour continuous operation and enhancing equipment performance and quality.
2. Features constant current and constant power control functions, improving heating efficiency and achieving energy-saving effects.
3. Simple and convenient installation—simply connect to a three-phase 380V power supply, inlet water, and outlet water to begin operation. No professional installation required.
4. Timer function allows digital setting of heating time and holding time. Heating current and holding current can be adjusted independently.
5. Equipped with a self-diagnostic fault alarm system and multiple protections including overvoltage, overcurrent, overheating, low water level, and phase loss, all with visual indicators.

Primary Applications and Features of Induction Heating Equipment:
1. Heat treatment of gears, shafts, and similar components
2. Brazing of diamond tools such as grinding discs and trimming wheels
3. Brazing of composite pot bottoms
4. Heating of composite pipes
5. Annealing and stamping of stainless steel utensils
6. Brazing of woodworking tools, etc.
7. Melting of various metals
8. Brazing of copper pipe joints (for air conditioning and sanitary ware industries)
9. Cam quenching
10. Drawing and annealing of stainless steel vessels

Advantages and Applications of the Timing Function in Induction Heating Equipment:
1. Heating power, heating time, holding power, holding time, and cooling time are independently adjustable, enabling precise control over heating curves and temperatures;
2. Ideal for repetitive workpiece heating and rapid heating applications;
3. When applied to brazing, the combination of rapid heating and holding functions achieves swift heating while maintaining temperature during flux melting, ensuring complete flux spread;

Technical Specifications for HYCY-65 High-Frequency Induction Heating Equipment:
Power Supply: 3-phase 380V ±10%, 50-60Hz
Input Voltage: 320V-420V adjustable based on your specific power supply
Input Current: 6-120A
Input Power: 3-65KW adjustable
Oscillation Frequency: 15-30KHZ adjustable based on workpiece dimensions
Main Unit Dimensions: 660*400*790mm 65kg
Transformer Dimensions: 600*400*380mm 70kg
Cooling water pressure: 0.1-0.3 MPa
