Description

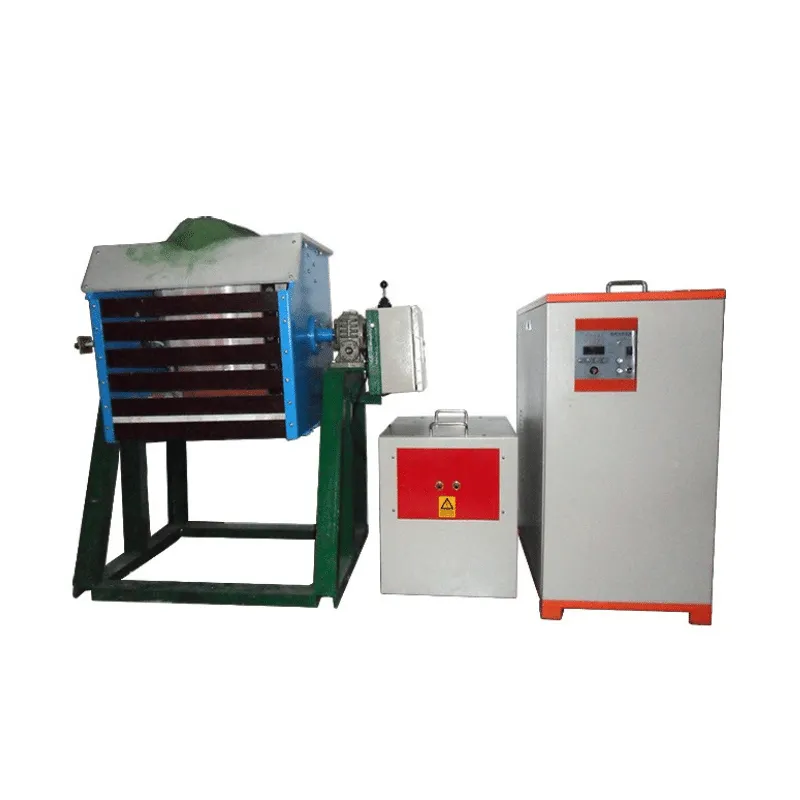

Key Features of Medium-Frequency Induction Melting Furnaces:
1. Extremely easy to install and operate—learn instantly
2. Ultra-compact size, lightweight, portable, occupies less than 1 square meter
3. Capable of continuous 24-hour melting operation
4. Energy-efficient; saves at least 30% more energy than thyristor-controlled medium-frequency systems
5. Easily interchangeable furnace bodies for varying weights, materials, and start-up methods to accommodate diverse melting requirements
6. Utilizes ultra-compact medium-frequency induction heating power supplies, fundamentally different from traditional medium-frequency power sources
7. Excellent heating penetration and uniform temperature distribution
8. Medium-frequency magnetic field provides magnetic stirring of molten metal, promoting uniform composition and slag separation
9. Recommended equipment and maximum melting capacity achieve 20-30 minute per-batch melting time
Primary Models and Melting Capacity:
| Model | Gold, Silver, Copper Melting Weight (kg) | Iron Melting Weight (kg) | Aluminum Melting Weight (kg) |
| HYZ-15 | 10 | 4 | 3 |
| HYZ-25 | 20 | 8 | 6 |
| HYZ-35 | 40 | 12 | 12 |
| HYZ-45 | 70 | 18 | 21 |
| HYZ-70 | 100 | 28 | 30 |
| HYZ-90 | 120 | 45 | 40 |
| HYZ-110 | 150 | 60 | 50 |
| HYZ-160 | 250 | 100 | 75 |
